Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio

المعلومات الأساسية
مكان المنشأ: الصين
اسم العلامة التجارية: RVYUAN
إصدار الشهادات: ISO9001/ISO14001 /UL/SGS
رقم الموديل: USTC
الحد الأدنى لكمية: 20 كجم
الأسعار: قابل للتفاوض
تفاصيل التغليف: بكرة مع الكرتون
وقت التسليم: 15 يوم عمل
شروط الدفع: تي / تي / باي بال
القدرة على العرض: تلبية الطلب الخاص بك
معلومات تفصيلية
القطر: 0.055 مم درجة حرارة: 155
إصدار الشهادات: IEC/NEMA/JIS/RoHS/ISO موصل: نحاس
فروع: 126 انهيار الجهد: الحد الأدنى 950
مادة الغطاء: نايلون الكلمة الرئيسية: سلك ليتز مطلي بالفضة 0.055 مم من الحرير الطبيعي للصوت
إبراز:

natural silk litz wire,silver plated audio wire,0.055mm litz wire

,

silver plated audio wire

,

0.055mm litz wire


منتوج وصف

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio
Product Overview

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio. The entire litz wire is wrapped in double layers of natural silk. Beyond its aesthetic appeal and flexibility, silk is a superior mechanical damper. It minimizes microphonic noise—the physical vibrations that can be translated into unwanted electrical signals—resulting in a quieter noise floor and allowing for a more lifelike, three-dimensional soundstage. This combination of high-strand Litz geometry, robust enamel insulation, and natural silk damping creates a conductor of unparalleled purity and sonic accuracy.

Technical Specifications
Conductor diameter (mm) 0.0550±0.0030 (silver layer: 0.0002)
Single sides insulated layer thickness 0.0050±0.0010
Electrical resistance of single wire (Ω/m) 6.243~7.738
Breakdown Voltage (V) ≥950
Twist Distance (mm) P1=8±2 P2=21±3
Stranding mode 18X7
Electrical resistance (Ω/m) 0.0505~0.0627
Thermal class F(155)
Soldering time 2S/390±5℃
Twist Direction Z
Faults/5 m (Saline pinhole) 0
Product Image

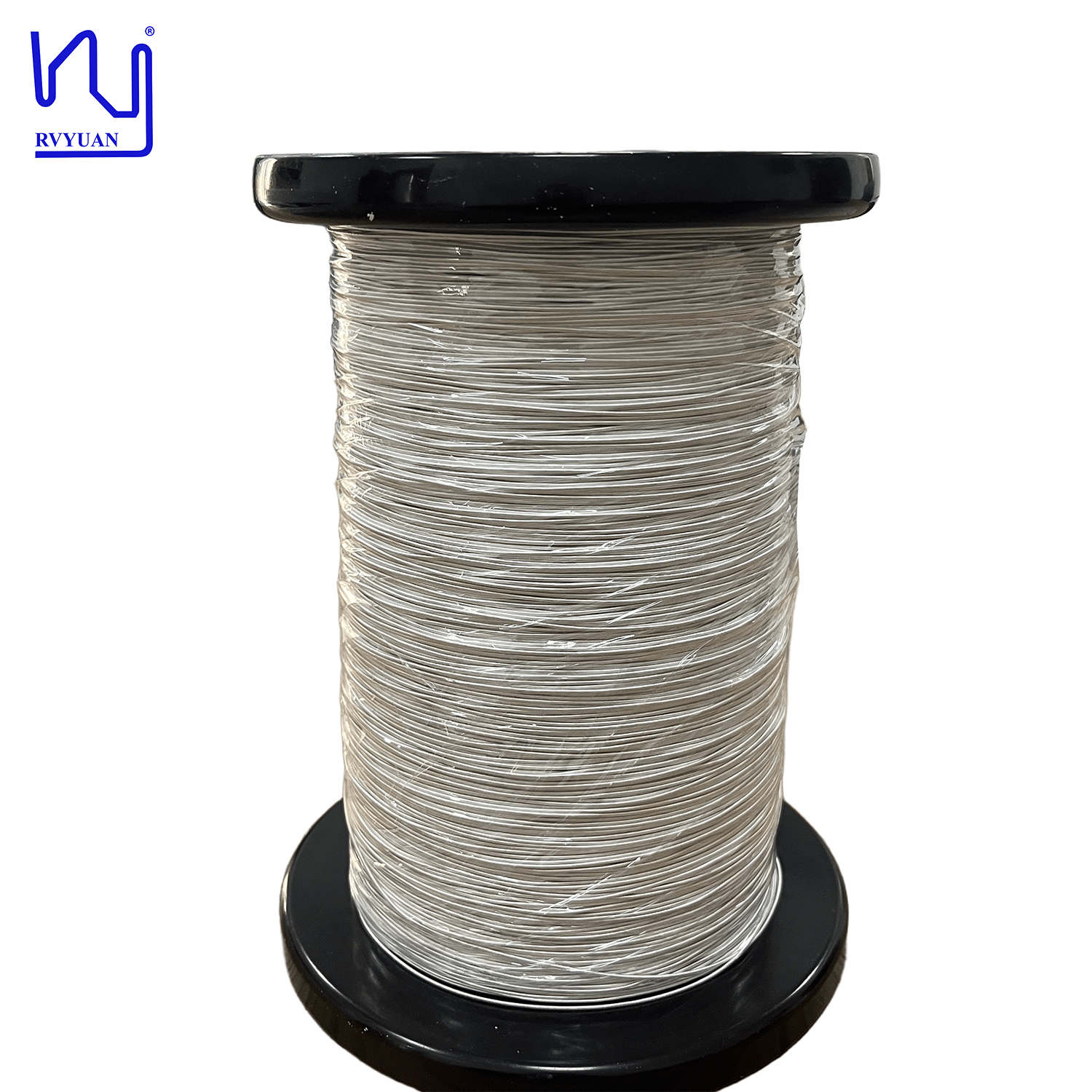

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio 0
