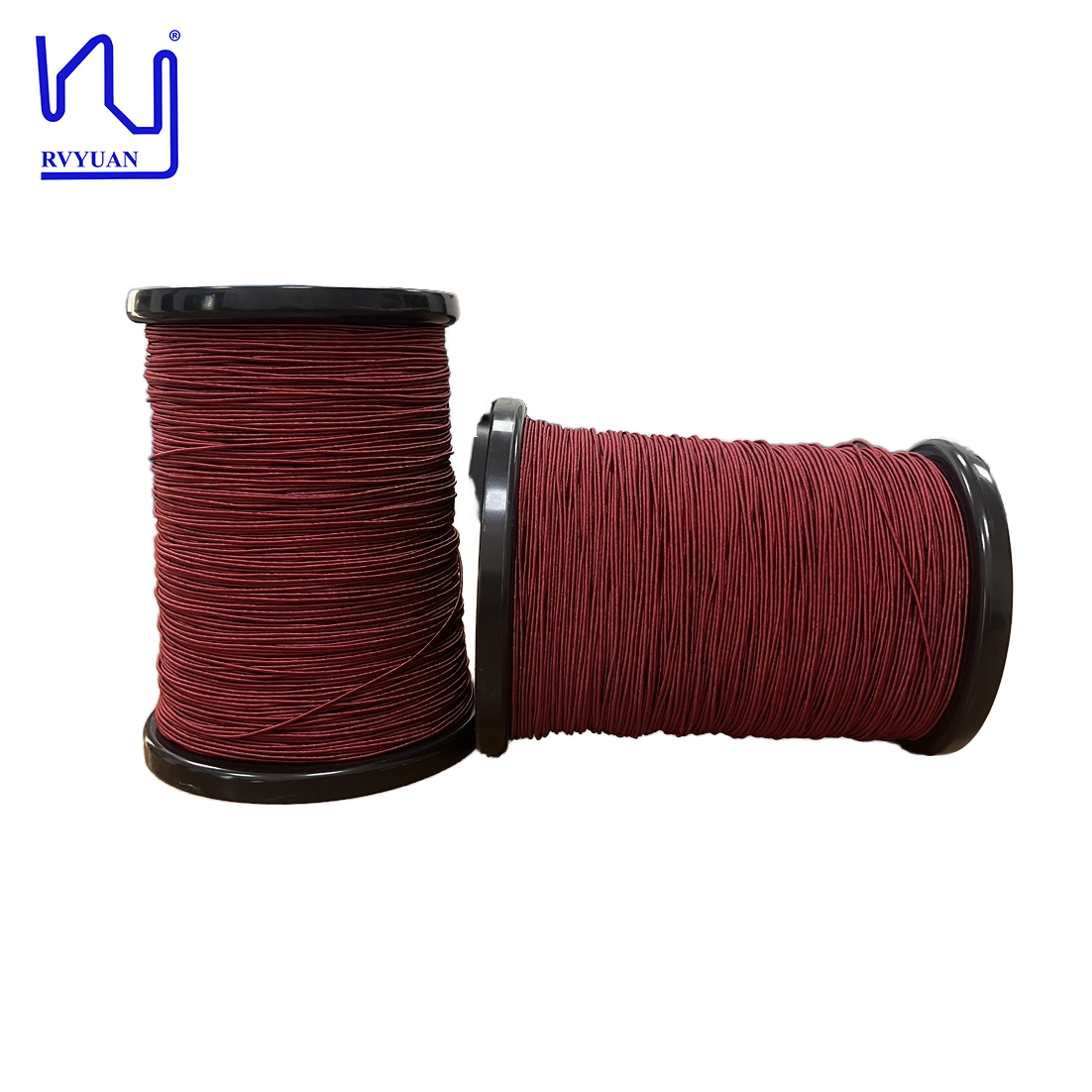

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire

المعلومات الأساسية
مكان المنشأ: الصين
اسم العلامة التجارية: RVYUAN
إصدار الشهادات: ISO9001/ISO14001 /UL/SGS
رقم الموديل: USTC
الحد الأدنى لكمية: 10 كجم
الأسعار: negotiable
تفاصيل التغليف: بكرة مع الكرتون
وقت التسليم: 2-15 أيام عمل
شروط الدفع: T/ T/ PayPal
القدرة على العرض: تلبي طلبك
معلومات تفصيلية
القطر: 0.08mm درجة حرارة: 155
إصدار الشهادات: IEC/NEMA/JIS/RoHS/ISO موصل: نحاس
خيوط: 270 جهد الانهيار: min.1100
مادة الغطاء: نايلون اسم المنتج: سلك ليتز مجدول عالي التردد 0.08 مم 27 خيطًا مغطى بالحرير
الكلمة الرئيسية: سلك ليتز مجدول عالي التردد 0.08 مم 27 خيطًا مغطى بالحرير
إبراز:

silk covered litz wire,high frequency litz wire,27 strands litz wire

,

high frequency litz wire

,

27 strands litz wire


منتوج وصف

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire
Silk covered Litz wire is widely used in transformer windings, wireless chargers for mobile phones, and electric vehicle charging stations. In transformers, its flexibility and durability enable efficient energy transfer and heat dissipation. In wireless chargers, the wire's stability and robustness ensure reliable performance and a long service life; while in electric vehicle charging stations, it supports high-frequency operation, thereby improving charging efficiency and safety.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700
High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire 0
