| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | Ruiyuan |
| إصدار الشهادات: | UL/ISO9001/ISO14001/RoHS/Reach |
| رقم الموديل: | نظرة خاطفة |
| الحد الأدنى لكمية: | 50 كجم |
| الأسعار: | negotiable |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | 100 كجم / أسبوع |
| نوع الموصل: | صلب | مادة: | نحاس |
|---|---|---|---|
| شكل: | مستطيل | عرض: | 2.0mm |
| يكتب: | معزول | الشهادات: | بنفايات/UL/SGS/ISO9001:2008 |

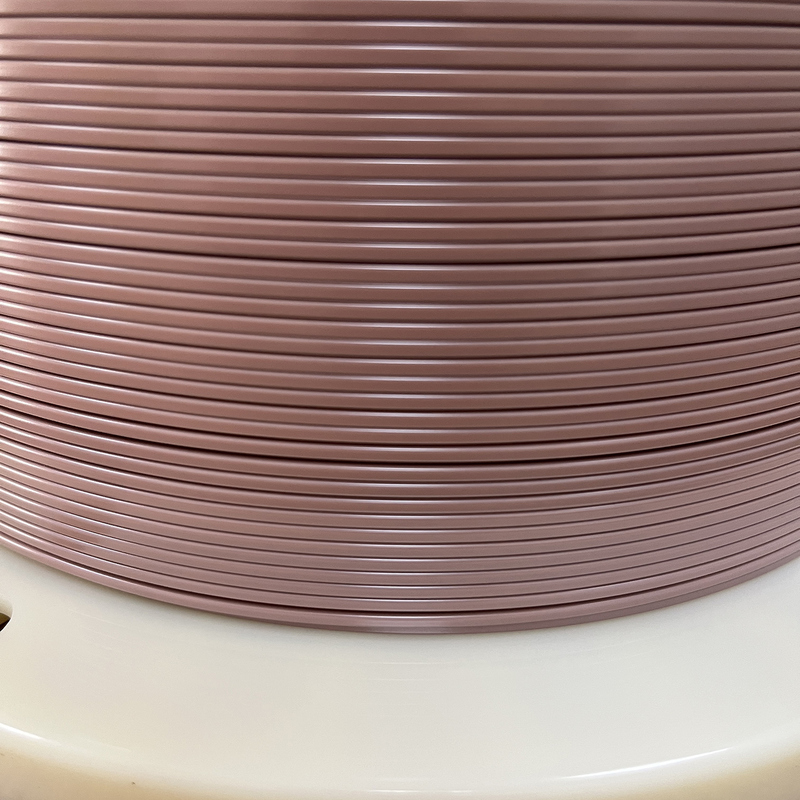

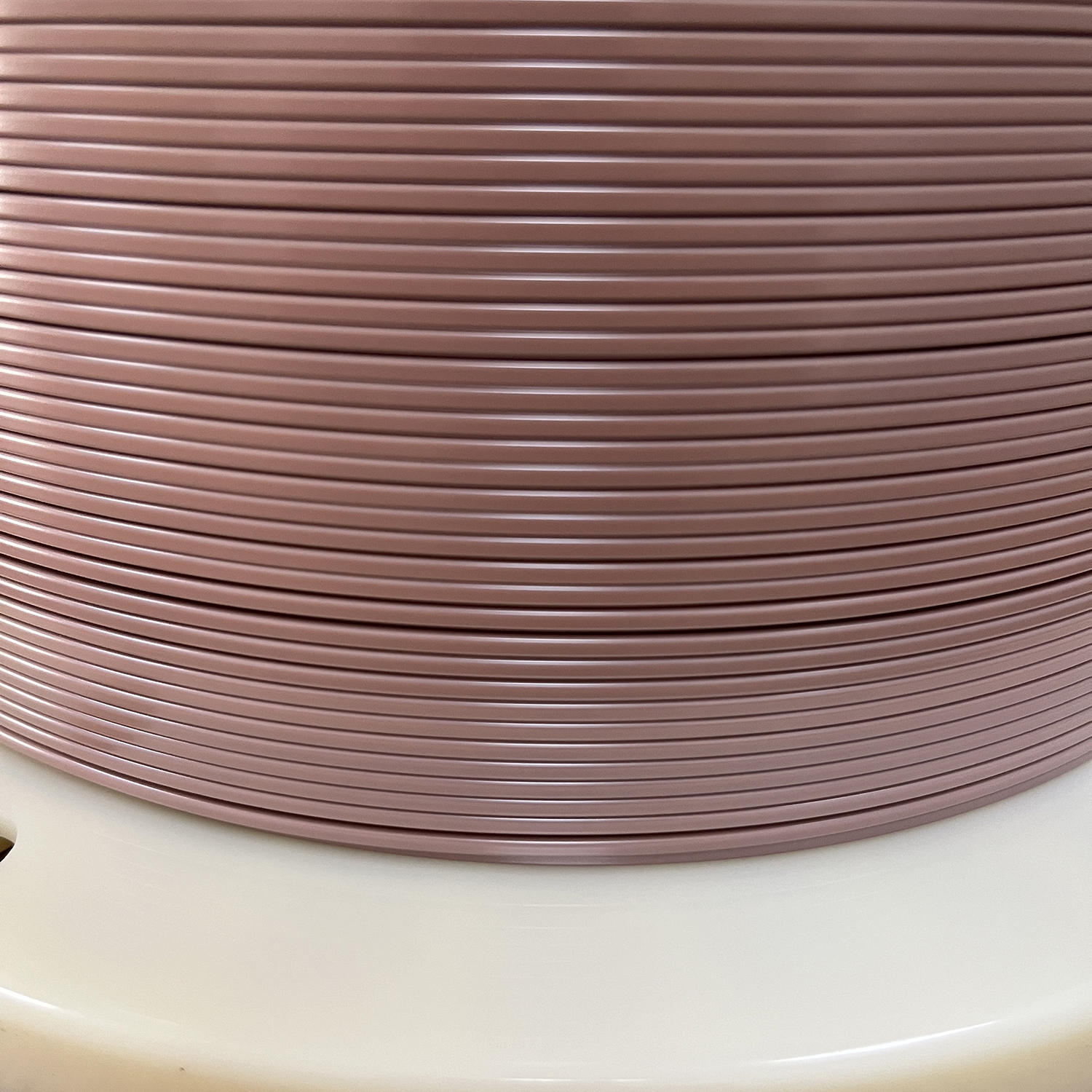

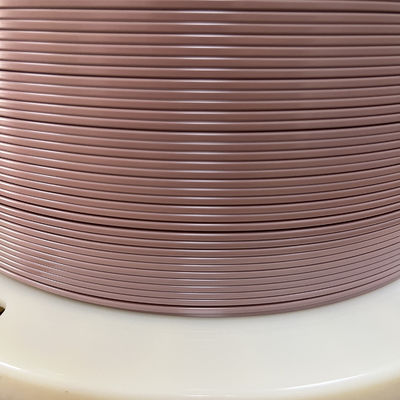

| اسم المنتج: | مخصص نظرة خاطفة سلك بوليثرثركيتون العزل 2.0 مم 4.0 مم 5.0 مم | سماكة: | 1.4mm |
| إبراز: | PEEK insulated copper wire,custom PEEK wire 2.0mm,rectangular copper wire 5.0mm,custom PEEK wire 2.0mm,rectangular copper wire 5.0mm |
||
PEEK filament offers exceptional high-temperature resistance, maintaining mechanical integrity at temperatures up to 260°C. It exhibits strong chemical resistance to a wide range of acids and organic solvents, and is both strong and abrasion-resistant. Furthermore, its excellent electrical insulation properties over a wide temperature range, low outgassing, and robust radiation resistance make it suitable for environments exposed to radiation. Its biocompatibility further solidifies its position as the material of choice for medical implants.
| Ref. - | Item | Specification | Measurement data | Measure equipment |
|---|---|---|---|---|
| No. | W607010 2A250904 | W607010 2B250904 | ||
| 1 | Copper width | 1.980-2.020mm | 2.004 | 2.005 | Mircometer |
| 2 | Copper thickness | 1.380-1.420mm | 1.400 | 1.399 | Mircometer |
| 3 | Overall width | 2.300-2.360 mm | 2.324 | 2.321 | Mircometer |
| 4 | Overall thickness | 1.700-1.760 mm | 1.732 | 1.731 | Mircometer |
| 5 | Copper radius | 0.350-0.450mm | 0.375 | 0.408 | Microscope |
| 6 | Copper radius | 0.385 | 0.412 | Microscope | |
| 7 | Copper radius | 0.399 | 0.411 | Microscope | |
| 8 | Copper radius | 0.404 | 0.407 | Microscope | |
| 9 | Insulation layer thickness | 0.145-0.185mm | 0.170 | 0.159 | Microscope |
| 10 | Insulation layer thickness | 0.162 | 0.155 | Microscope | |
| 11 | Insulation layer thickness | 0.155 | 0.161 | Microscope | |
| 12 | Insulation layer thickness | 0.167 | 0.165 | Microscope | |
| 13 | Insulation layer thickness | 0.152 | 0.155 | Microscope | |
| 14 | Insulation layer thickness | 0.161 | 0.159 | Microscope | |
| 15 | Insulation layer thickness of radius | 0.145-0.185mm | 0.156 | 0.158 | Microscope |
| 16 | Insulation layer thickness of radius | 0.159 | 0.155 | Microscope | |
| 17 | Insulation layer thickness of radius | 0.154 | 0.159 | Microscope | |
| 18 | Insulation layer thickness of radius | 0.160 | 0.165 | Microscope | |
| 19 | Copper | T1 | OK | Material certificate |
| 20 | Coating/Temperature grade | 240℃ | OK | Material certificate |
| 21 | Elongation | ≥40% | 46 | 48 | Tensile tester |
| 22 | Spring back angle | / | 5.186 | 5.098 | Auto spring back test |
| 23 | Flexibility | After winding with Ø 2.0mm and Ø3.0mm diameter round rods, there should be no cracking in the insulation layer. | OK | OK | Visual |
| 24 | Adhesion | ≤3.00mm | 0.394 | 0.671 | Tensile tester&Microscope |
| 25 | 20℃ Conductor resistance | ≤6.673 Ω/km | 6.350 | 6.360 | Conductor resistance tester |
| 26 | BDV | ≥12000 V | 22010 | 21170 | Auto voltage tester |
| 27 | PDIV | ≥1300 RMS (25℃,50V/S,50Hz,100Pc) | 1425 | 1429 | PDIV tester |
| 28 | Heat shock | After baking at 240℃ for 30 minutes, the insulation layer should have no cracks. | OK | Oven |
| 29 | Defect inspection | High voltage Pinhole: DC 3000V, 16uA | 0 | 0 | On-line inspection system |
| Parricle: Height＞0.100mm need to be marked | 0 | 0 | |||
| Impurity:Length or width ≥ 0.4mm or area ≥0.16mm² need to be marked | 0 | 2 | |||
| 30 | Spool&Weight | Sample phase:P-30,25±15kg Mass productin:PC-630B,160± 60kg | P-30 | P-30 | Visual |
