| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | RVYUAN |
| إصدار الشهادات: | UL/ISO9001/ISO14001/RoHS/Reach |
| رقم الموديل: | 0.27 مم |
| الحد الأدنى لكمية: | 1000 متر |
| الأسعار: | negotiable |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | T/T/PayPal |
| القدرة على العرض: | 1 طن/شهر |
| اسم المنتج: | فئة مخصصة 155 7 خيوط مقذوفة سلك Etfe Insulation Copper Litz | التصنيف الحراري: | 155 |
|---|---|---|---|
| قطر سلك واحد: | 0.27 مم | مواد موصل: | نحاس |
| عدد الخيوط: | 7 | إينسوالتيون: | ETFE |
| إبراز: | Custom Class 155 Litz Wire,7 Strands ETFE Insulation Wire,Extruded Copper Litz Wire,7 Strands ETFE Insulation Wire,Extruded Copper Litz Wire |
||

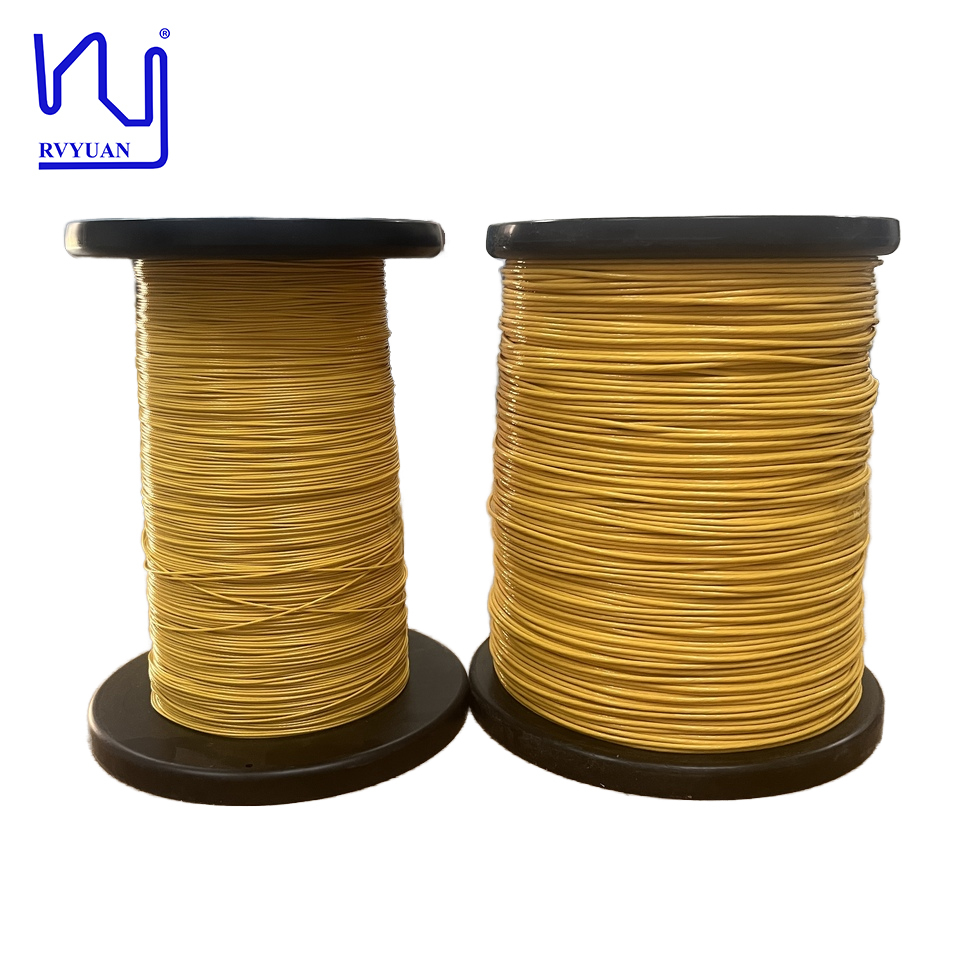

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire
A cable composed of multiple strands of insulated wire, twisted or braided together in a specific configuration to reduce AC resistance, particularly at high frequencies.
Ethylene Tetrafluoroethylene, a fluoropolymer known for its high dielectric strength, excellent thermal stability, resistance to chemicals and UV radiation, and low friction properties.
| Characteristics | Test Standard | Test result |
|---|---|---|
| Outer diameter of single wire | 0.295mm | 0.288 | 0.287 | 0.287 |
| Min. insulation thickness | /Mm(min) | 0.019 | 0.018 | 0.019 |
| Pitch | S12±2 | ok | ok | ok |
| Single wire Diameter | 0.27±0.004MM | 0.269 | 0.269 | 0.268 |
| Overall dimension | 1.06-1.2mm(Max) | 1.078 | 1.088 | 1.085 |
| Conductor Resistance | Max. 45.23Ω/KM(max) | 44.82 | 44.73 | 44.81 |
| Breakdown voltage | Min. 6KV(min) | 15 | 14.5 | 14.9 |
| Solder ability | 450℃ 3Secs | OK | OK | OK |
| Conclusion | Qualified |
We have a professional team to provide technical support. Custom specifications available upon request.
