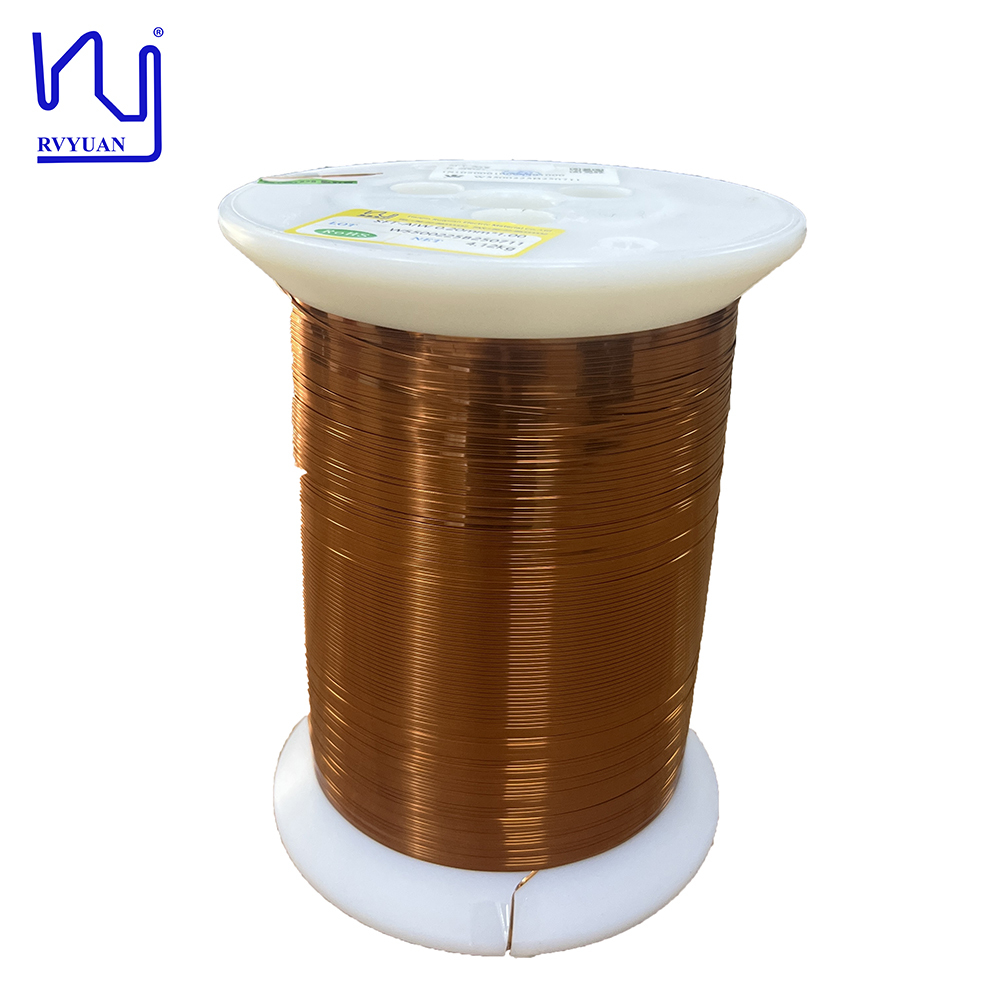

UL AIW220 0.2mmx1.0mm Enameled Flat Copper Wire for Motors

المعلومات الأساسية
مكان المنشأ: الصين
اسم العلامة التجارية: RVYUAN
إصدار الشهادات: IEC/NEMA/JIS/RoHS/ISO
رقم الموديل: فئة 220
الحد الأدنى لكمية: 10 كجم
الأسعار: negotiable
تفاصيل التغليف: التخزين المؤقت مع الكرتون
وقت التسليم: 2-15 يوم عمل
شروط الدفع: T / T / باي بال
القدرة على العرض: تلبية الطلب الخاص بك
معلومات تفصيلية
الشكل: مستطيل أبعاد الموصل (العرض): 1.0 ملم
سمك طبقة العزل الأحادية الجانب (العرض): 0.2 ملم التطبيقات: محرك ، محول
الدرجة الحرارية: 220 الكلمة الرئيسية: UL Certification AIW220 0.2mmx1.0mm فائقة الأسلاك النحاسية المسطحة ذات المينا الإلكترونية للإلكتروني
التصنيف الحراري: 220 طلاء المينا: AIW
إبراز:

enameled flat copper wire,UL AIW220 motor wire,0.2mmx1.0mm rectangular copper wire

,

UL AIW220 motor wire

,

0.2mmx1.0mm rectangular copper wire


منتوج وصف

UL Certificate AIW220 0.2mmx1.0mm Super Thin Enameled Flat Copper Wire For Electronics
Product Specifications
Attribute Value
Shape Rectangular
Conductor Dimension (Width) 1.0mm
Unilateral Insulation Layer Thickness (Width) 0.2mm
Applications Motor, transformer
Thermal Grade 220
Thermal rating 220
Enamel coating AIW
Product Description
This custom-made ultra-fine enameled flat copper wire is designed to meet the evolving demands of modern technology. Engineered with precision and heat resistant up to 220 degrees Celsius, this wire provides exceptional performance for precision instruments and equipment.
Technical Specifications
Item Conductor dimension Insulation thickness Overall dimension Dielectric breakdown voltage Conductor resistance
T W T W T W kv Ω/km 20℃
Unit mm mm mm mm mm mm kv Ω/km 20℃
SPEC AVE 0.200 1.000 0.025 0.0025 / /
Max 0.209 1.060 0.040 0.004 0.250 1.100 96.380
Min 0.191 0.940 0.010 0.010 0.700
Result OK OK OK OK OK OK OK OK
UL AIW220 0.2mmx1.0mm Enameled Flat Copper Wire for Motors 0
